I worked hard designing a Spring Steel metal band that would wrap around the Norcold Door Frame Plastic Hinge area where it always cracks and breaks, causing customers have to purchase new refrigerators, not anymore. I have now finished the new design, These are made right here in the USA. This Spring Steel Metal Support Band is added to your Norcold Door Frame Plastic Hinge area along with the Our Norcold Hinge Repair Kit where it always cracks will fix and prevent the doors from falling off.
Of course, Our Door Hinge Repair kit I already sell, repairs your problem, now along with our new Metal Support Band“ it solves problem for good”by adding Our Metal Support Band around the Plastic Hinge area you will never have the problem again. My New designed Metal Support Band will fit both the standard Norcold Door frame like the ones listed below and we do have Polar series if you have Polar model that's another listing. As most RV customers know,replacement doors for the older models are not available and this Metal Support Bandalong with our Hinge Repair kit part kit 634166 will solve your broken door Hinge rather the plastic hinge is completely broken off which you can use JB Weld to bond back in place and the Metal Support Bandwill wrap around the broken hinge, holding it tightly in place by 3 screws and also use our Metal Hinge Repair kit to carry all the weight now it will be Stronger than when new with an all metal corner.

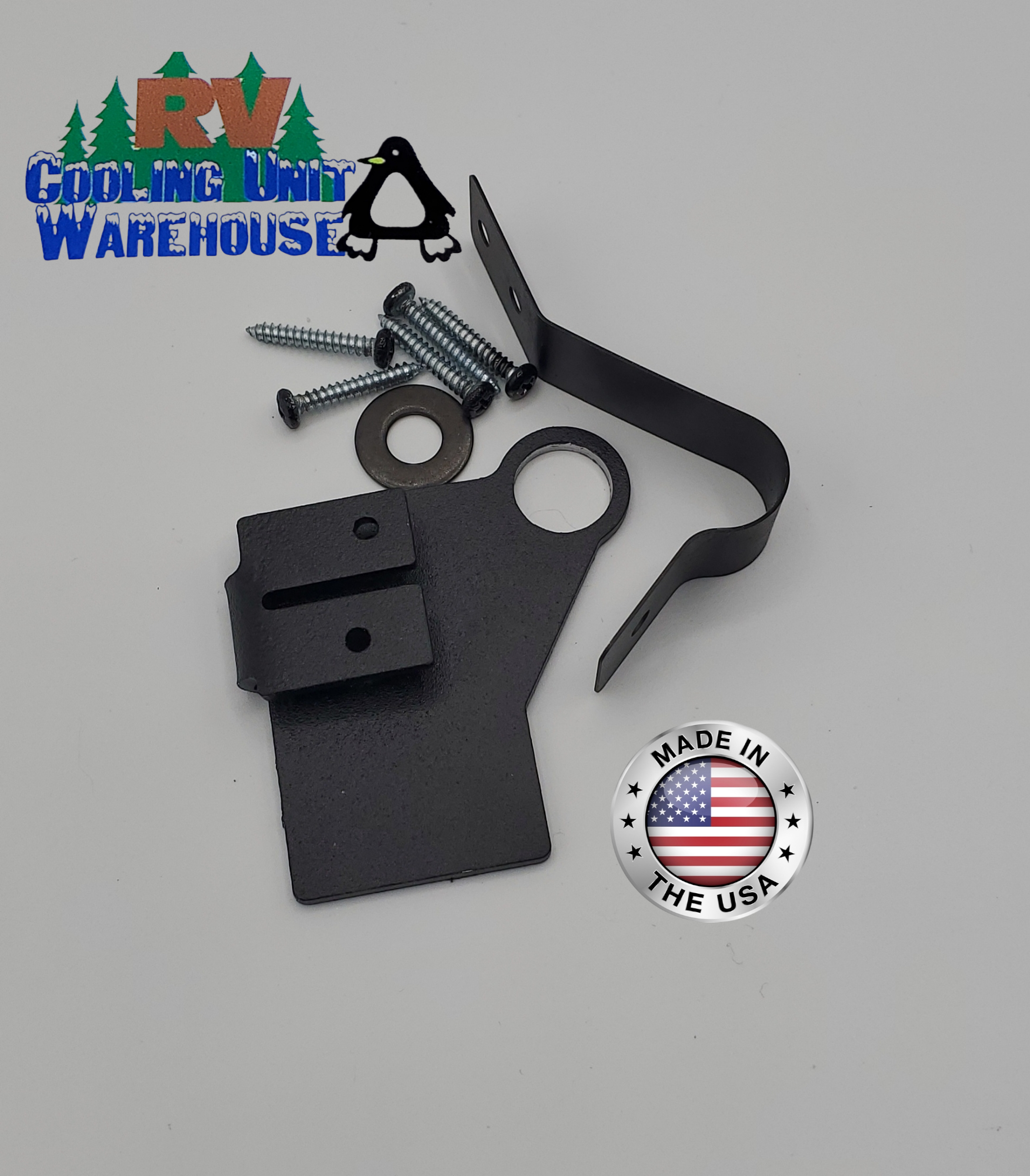

Shipped with screws and washer.
Standard Norcold models uses the part 634166 hinge repair kit:
Fits Models like the N611, N621, N622, N641, NX641, NXA641, N811, N821, N822, N841, N842, NX841, NXA841

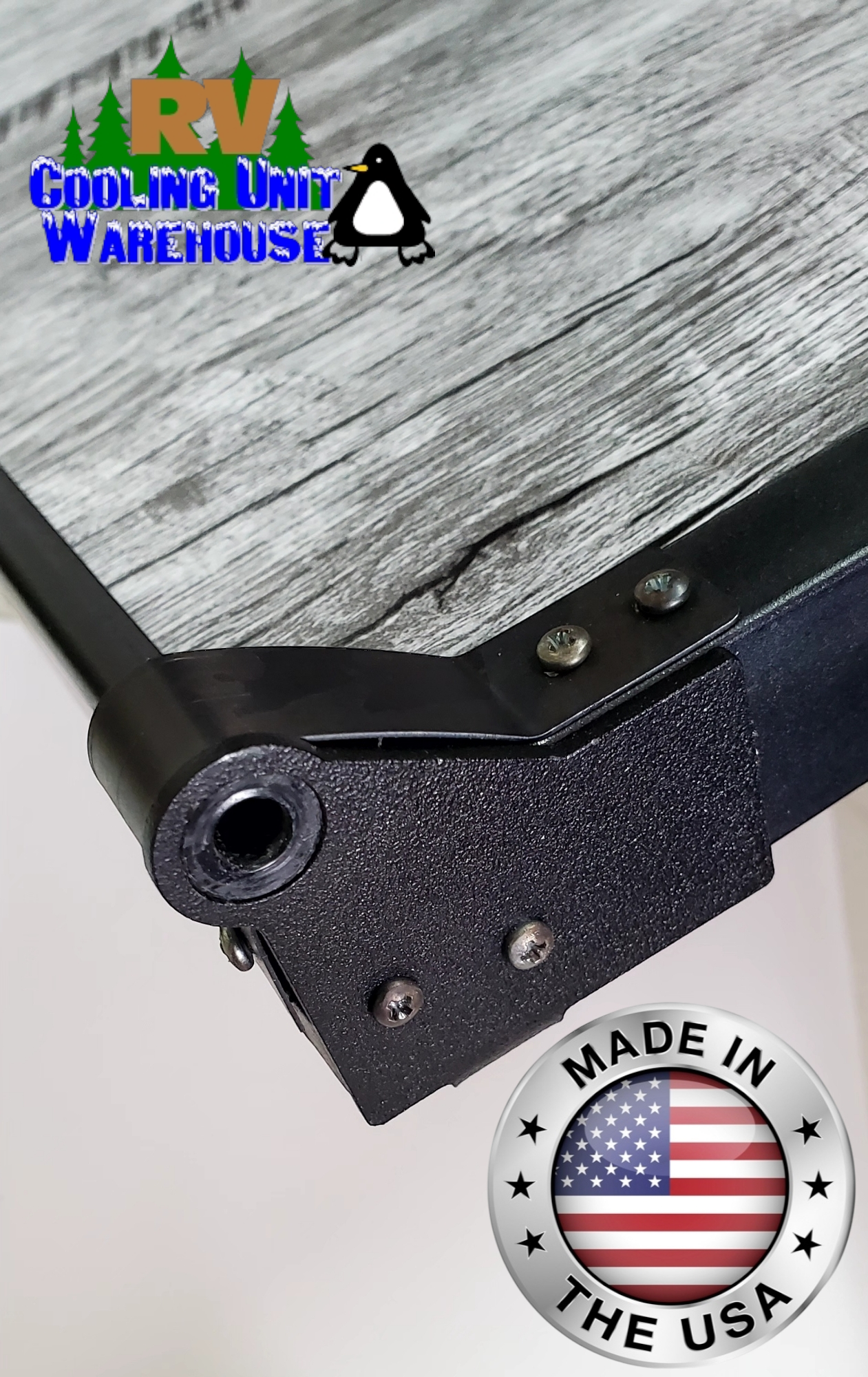

To install using the 634166 kits: simply slide the 2 tabs of the Metal Hinge Repair Kit under the Door frame in place with the Round Ring firmly around the bushing, mark your top 2 holes in the top Door Frame. Use a small drill bit to make a pilot hole to attach the screws furnished to secure Metal Hinge kit plate. If your Plastic bottom Hinge area is badly cracked or broken out, use JB Weld first, place back in place the Hinge Repair Kit screw down tight to form a strong Hinge repaired area. Now the Support Band will be place against front Door surface, mark your end hole first to screw down tight. The Support band will not fit flush when test fit, once the spring steel is flexed down tight, Mark the front 2 holes to pre-drill, use the screws furnished to secure the Support Band tight. If needed depending on the damage, you can apply JB Weld under the Metal Support Band too.
Door hinge repair when Plastic broken part is missing
If your Plastic Hinge Area part completely broken off and the broken part is lost, that’s not a problem. You can use Our Metal Support Band. Place the Metal Support Band in place with our Door Hinge Repair kit. Now use 2 part Epoxy Putty to fill the void by filling the Epoxy Putty to form the area missing up through Metal Support Band to the Metal Hinge Repair hinge ring. Level off and let cure. Once cured hard, drill a new center hole for your hinge pin. Now you are back with New fixed forever door hinge repair.
