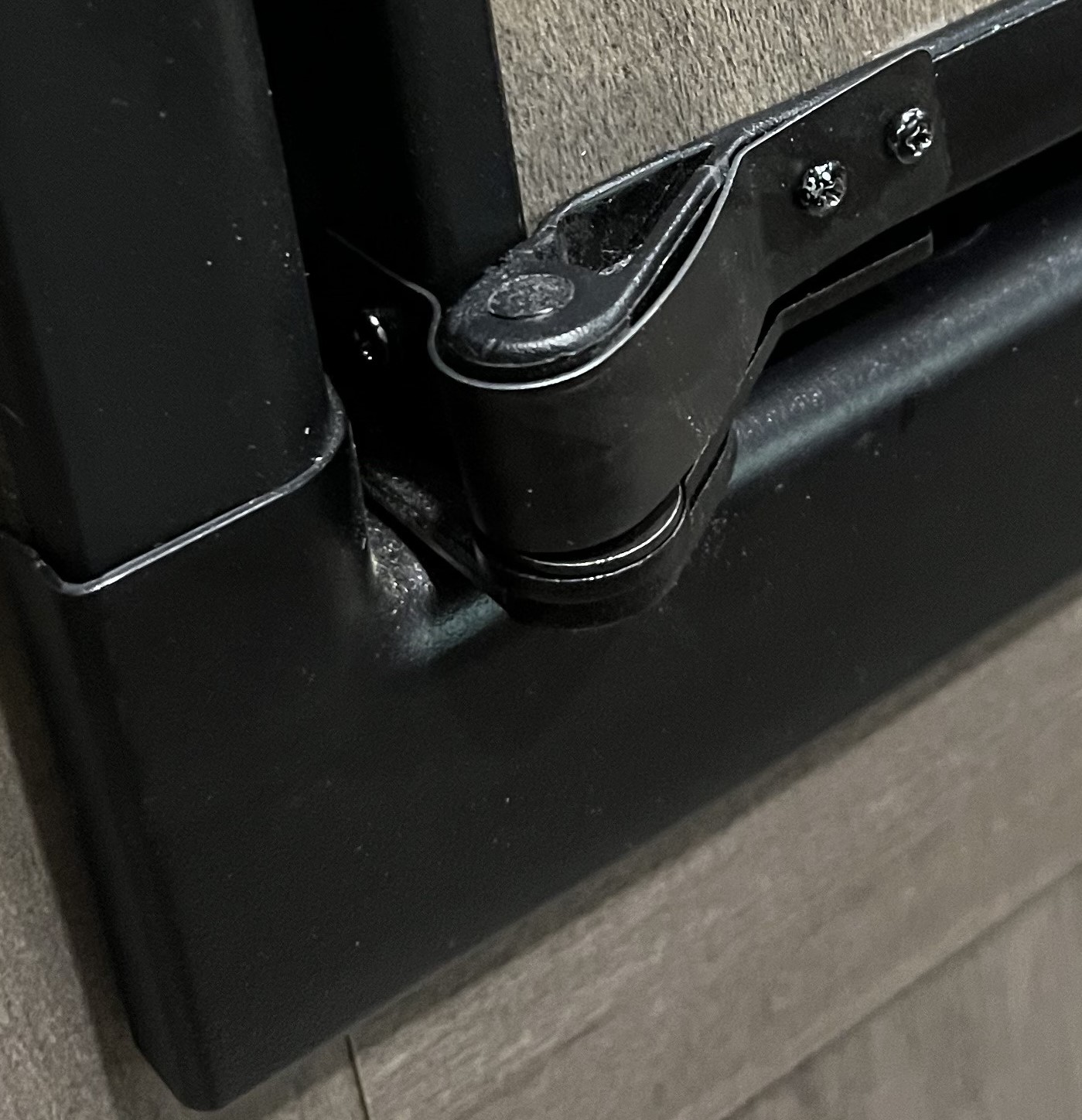

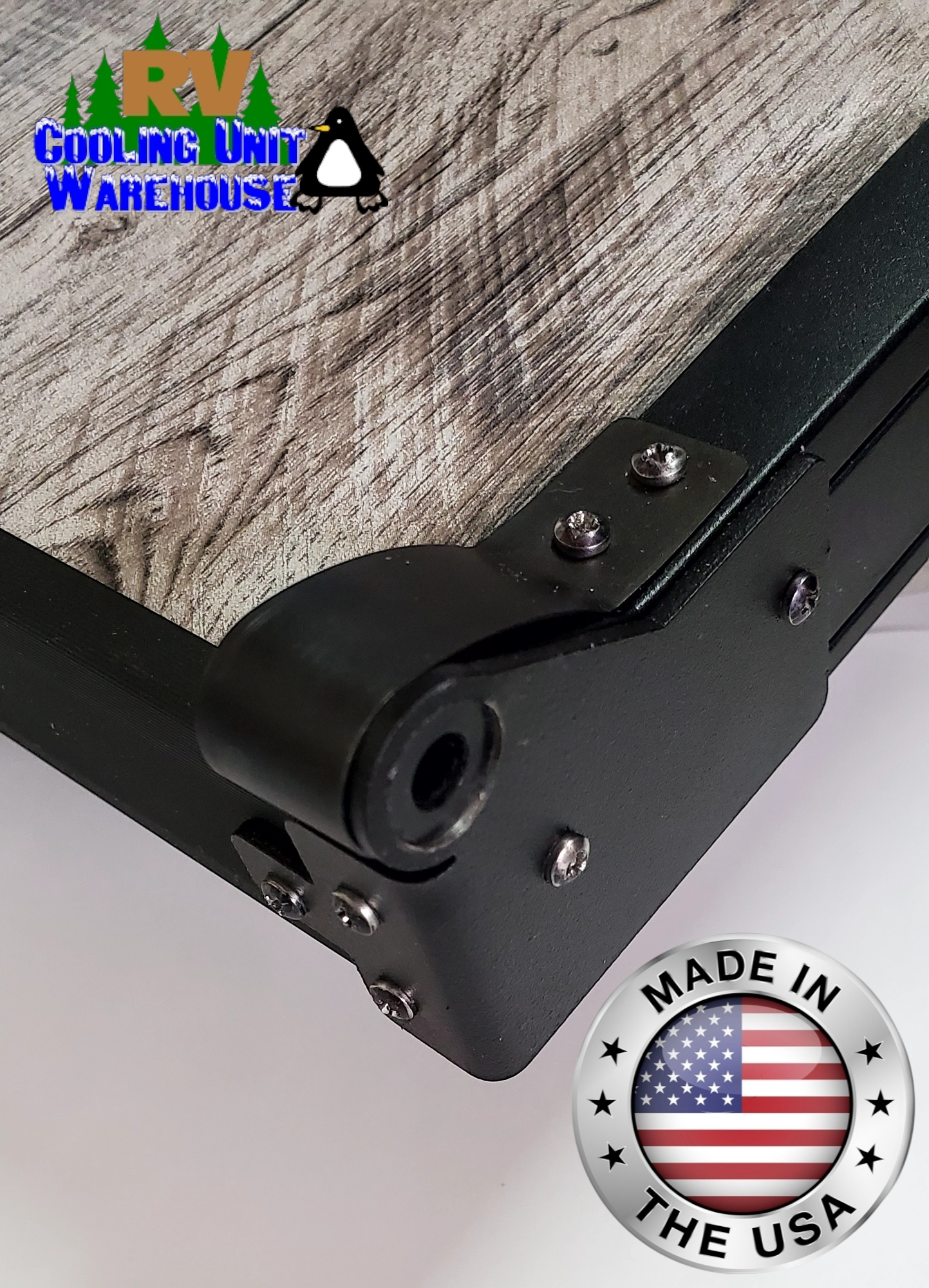

I worked hard designing a Spring Steel metal band that would wrap around the Norcold Door Frame Plastic Hinge area where it always cracks and breaks, causing customers have to purchase new refrigerators, not anymore. I have now finished the new design, These are made right here in the USA. This Spring Steel Metal Support Band is added to your Norcold Door Frame Plastic Hinge area that always cracks and will prevent the doors from falling off.
Of course, Our Door Hinge repair kit repairs your problem, now along with our new Metal Support Band “it solves problem for good” with Our Metal Support Band around the Plastic Hinge area you will never have the problem again. My New designed Metal Support Band will fit both the Polar Norcold Door frame like the ones listed below and Standard Norcold Models listed in another listing. As most RV customers know, replacement doors for the Polar models are not available and this Metal Support Band along with our Hinge Repair kit part kit will solve your broken door Hinge rather the plastic hinge is completely broken off which you can use JB Weld to bond back in place and the Metal Support Band will wrap around the broken hinge, holding it tightly in place by 3 screws and also use our Metal Hinge Repair kit to carry all the weight now it will be Stronger than when new with an all metal corner. Better yet, by adding the Metal Support Band and Our Metal Repair Kit before your Plastic hinge area starts to crack to either your Polar series Model or Standard Norcold Model . None of the older Standard Norcold doors are not available..

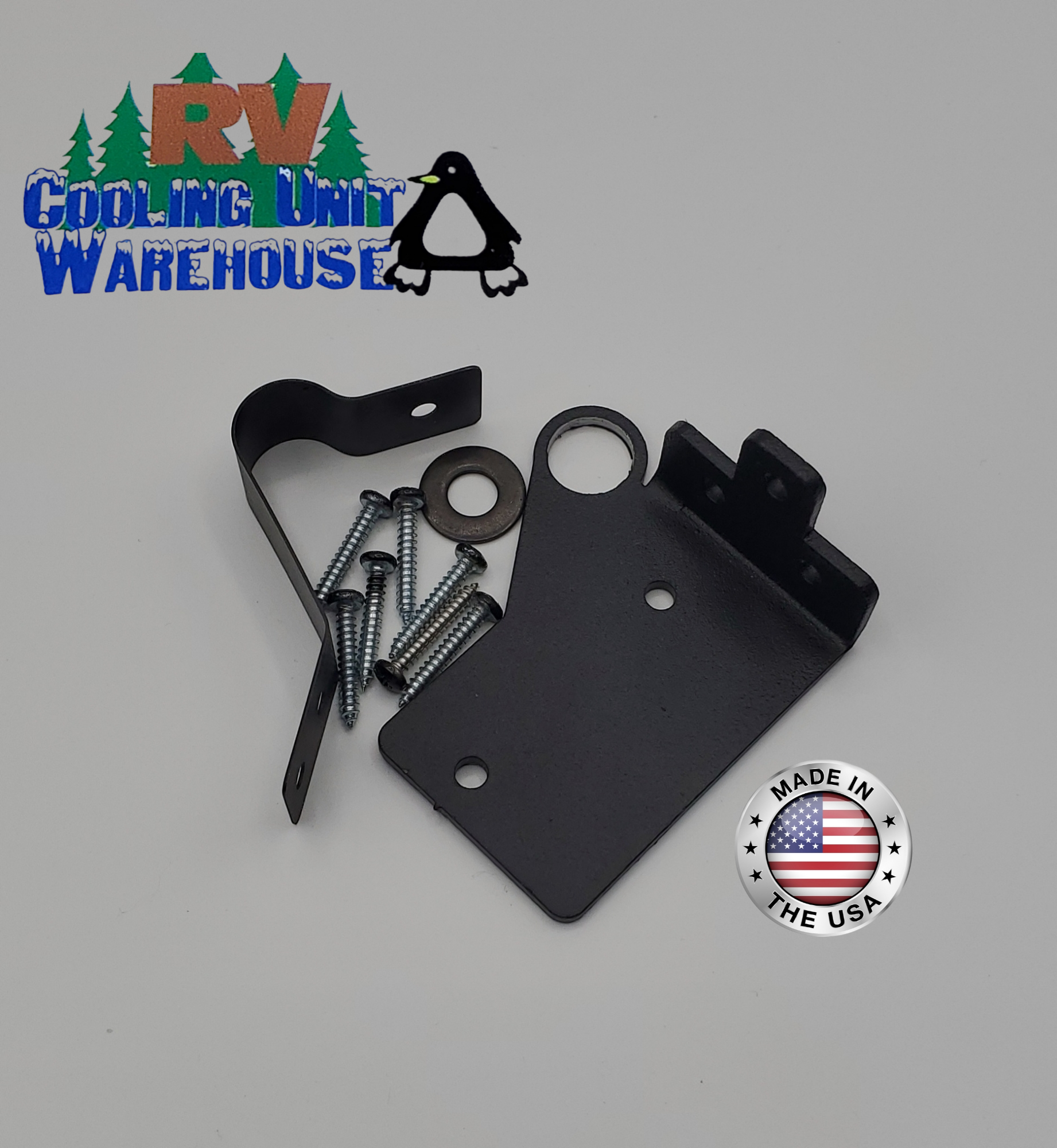

Shipped with screws and washer.
Click the link below to see a clip install video
Polar Support Band install Video.mp4
Polar Series Models cannot use the Hinge repair kit part number 634166, this kit fit models below :
N7X, N7LX, N7V, NALX, NA7LX, N8X, N8V, NA8X, NA8LX, N8XRFT, N8XRT, N8XF, N8VF, N10X, N10LX, NA10LX
To install using the Polar Metal Hinge Repair kit: simply fit the Metal Hinge Repair Kit to the Door frame with the Round Ring firmly around the Door bushing, mark top 2 holes in the Door Frame and make the 3 holes on the end plate. Use a small drill to make pilot holes to attach using screws furnished to secure Metal Hinge plate top 2 screws only. NOTE: If your Plastic bottom Hinge area is badly cracked or broken out, use JB Weld first to place under the area and then place the Hinge repair in place to screw down tight to form a strong Hinge repaired area. Now Slide the Support Band around the plastic hinge the short end under the Hinge Repair Kit, now secure the 3 end holes tight. The Support band will not fit flush till other screws are tight, once the spring steel is flexed down tight, Mark the 2 front holes to pre-drill, use the screws furnished to secure the Support Band tight. If needed depending on the damage, you can apply JB Weld under the Support Band too. All metal Hinge area to last many years.
Door hinge repair when Plastic broken part is missing
If your Plastic Hinge Area part completely broken off and the broken part is lost, that’s not a problem. You can use Our Metal Support Band. Place the Metal Support Band in place with our Door Hinge Repair kit. Now use 2 part Epoxy Putty to fill the void by filling the Epoxy Putty to form the area missing up through Metal Support Band to the Metal Hinge Repair hinge ring. Level off and let cure. Once cured hard, drill a new center hole for your hinge pin. Now you are back with New fixed forever door hinge repair.
