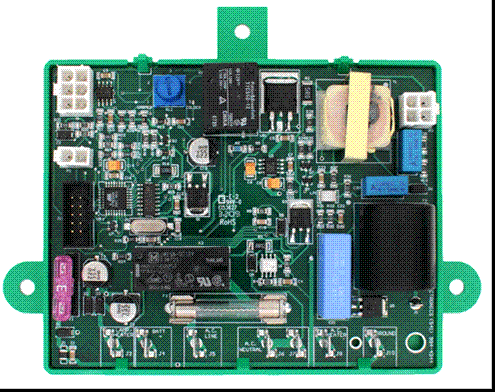

Dinosaur Electronics 3850712.01 Replacement

USE DINOSAURS 3850712.01 BOARD ONLY TO REPLACE PREVIOUSLY PROPERLY INSTALLED DOMETIC® 3850712-01 BOARDS.

Features:

Built in Ignitor.

2-way or 3-way operation.

Fuse protected.

Variable Temperature adjustment for those FIXED TEMP refrigerators.

The CHECK light comes on after each ignition try fails to sense a flame.

Repeats the 3 try ignition cycle at 30 minute intervals if no flame is sensed.

* In 3-way models, the DC element will drop out and the DC mode light will flash, if the voltage level falls too low for more than 10 seconds.

 Three year warranty

Fits the Following Domεtic Models:

• NDR1292 (Product # 921148115 – 921148116)
  RM2354 (Product # 921145051 – 921145052)

• RM2351 (Product # 921145049 -921145050)
  RM2454 (Product # 921140123 – 921140136)
  RM2620 (Product # 921575017)
  RM2652 (Product # 921144142 – 921144167)
  RM2662 (Product # 921144133 – 921144164)
  RM2663 (Product # 921144135 – 921144136)
  RM2820 (Product # 921596015)
  RM2852 (Product # 921146167 – 921146184)
  RM2862 (Product # 921146149 – 921146156)
  RM3862 (Product # 921146173 – 921146174)
