Select the correct one at the bottom: Standard series Norcold or New Polar Series
This Reinforcement Hinge Kit 634166 was discontinued by Norcold and one was never made for the New Polar Series door, so we had them designed & custom made for both, now Black Powder Coated ready to ship. When you purchase the 634166 kit it will install the same and we will still will use the same Part number for now. Tell your Friends they can stop searching all over the USA, we have them in stock !

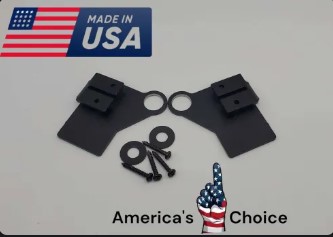

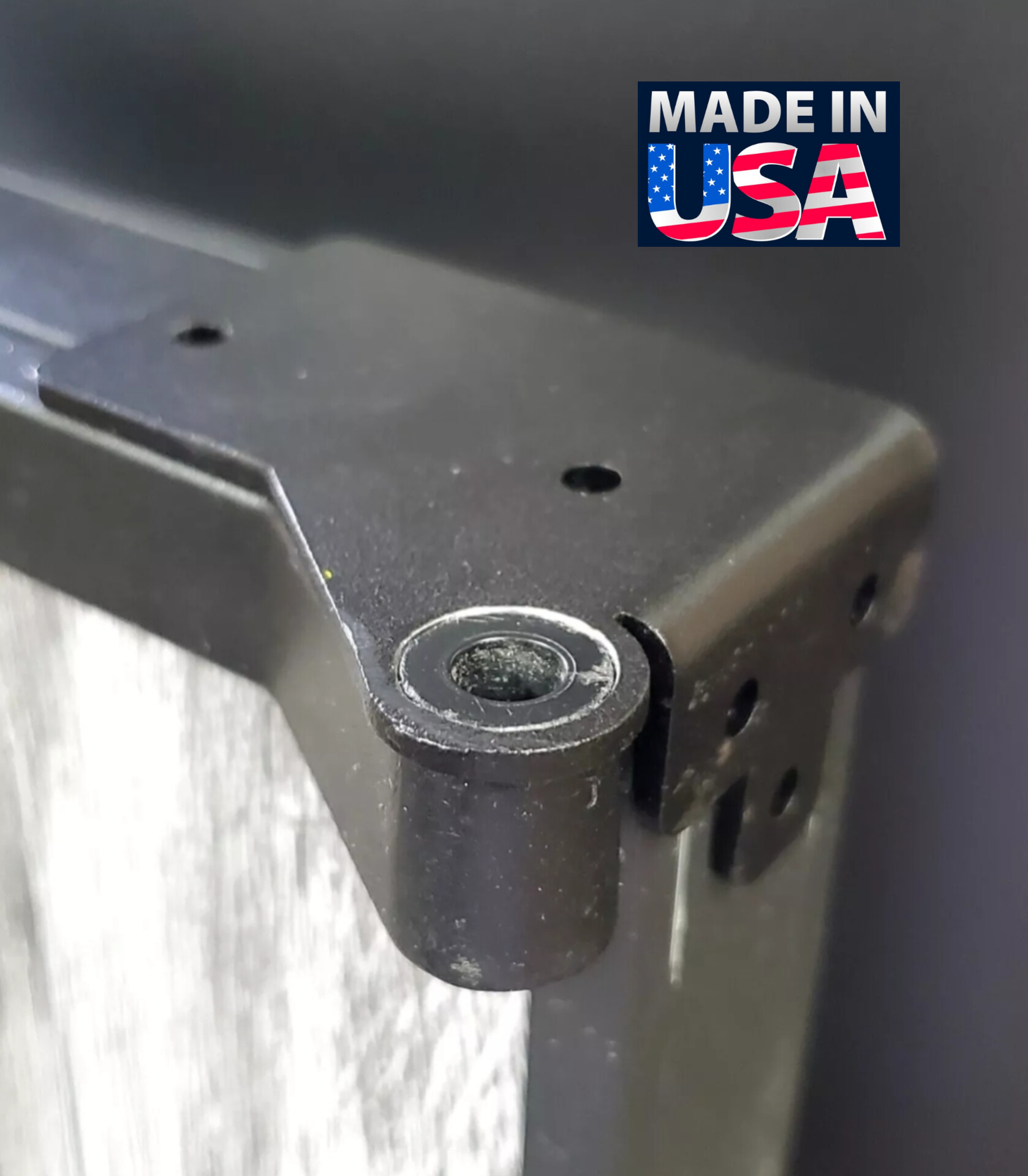

Norcold Discontinued making the part 634166, have the new Frame Hinge repair kit in stock , we had it custom made just for you. If we run out we can produce more. The new Metal Hinge repair kit comes with screws and washers, fits top and/or bottom corners for the Right hand or left hand Door... The picture shows our new Hinge Repair Kit 634166 showing it did not change and will work to keep you from Buying a new Complete door replacement which is not available from Norcold. You need to reinforce your Plastic bottom hinge with our Metal repair kit before you try to find the complete Door.
Are you going to replace your door because it broke out the plastic Hinge bottom base due to excess weight or hard swinging of the door? Done wait till the plastic cracks, add the reinforcement Hinge repair Kit before it happens on your trip. This hinge kit Metal PLATE base hinge adds extra strength to the door, SOLVES the problem. This kit will only work on Norcold series of N6xx, N8xx, and N1095 models doors. This kit is a recommended replacement part for models that have had the door break at the lower hinge, a very common problem. If your door has broken off, you will need to replace the door. Wait Our Metal hinge kit reinforces the door bottom hinge of the door frame and Save the Day and SAVEs $$$$$ from replacing the Door. Why wait till it cracks. Metal will not crack.
N611 N621 N622 N641 NX641 NXA641 N811 N821 N822 N841 NX841 NXA841
Doors with waffle liner in texture, this will not work on your hinge style since your unit is the older style door with different hinge type
To install: simply Slide in place with the Round Ring firmly around Door Frame bushing, mark your top 2 holes in the Door Frame. Use a small drill to make a pilot hole to attach the screws furnished to secure Metal Hinge kit plate. If your Plastic Hinge area is cracked or broken out use JB Weld to place under the area an then place the Hinge repair in place to screw down tight to form a strong Hinge area to last many years.
We also have a Special designed Door Frame Hinge repair kits for the New Norcold Polar series in Stock ready to ship NOW , Tell your Friends. Waiting is over ..
Click here for to watch Video
NOTE ! The Support Band shown in the video does not come with this repair kit, we do have them available if needed.
If you need a Polar series Hinge repair kit select the Polar series option below
