Dometic Clamp on Condenser Fan- AC Heating Element Package Kit SPECIAL
Item #FEL-PK-D
Dometic Parts / Dometic
Available
$94.00

Dometic Special Package Kit we have put together for customers that purchased a Dometic Cooling Unit and also want to add or upgrade to have the need to increase the air flow and to replace the AC heating element for the cooling unit they purchased.

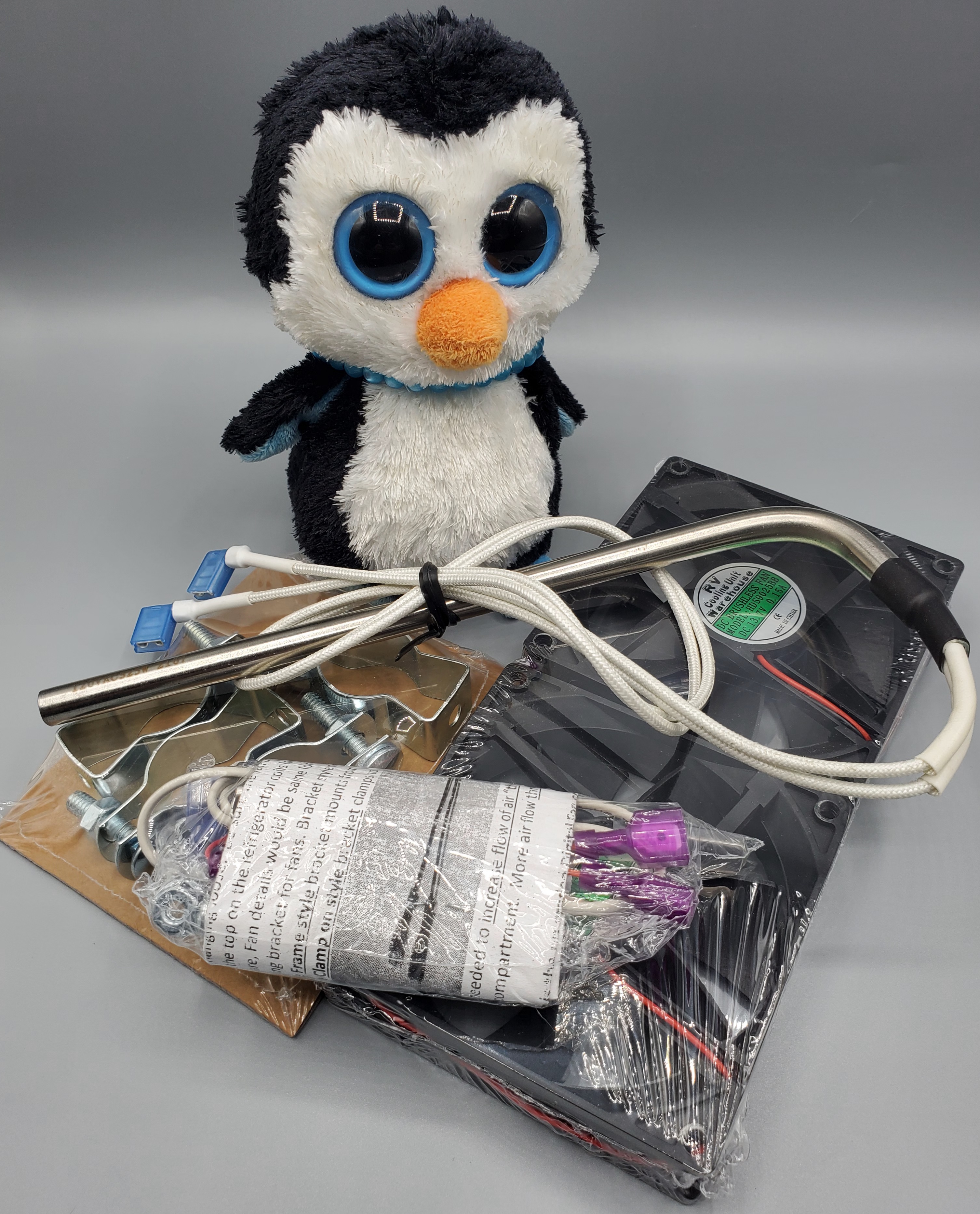

The Special kit will include a AC electric heating element for your model refrigerator the 2 Fan Clamp ON Fan kit with wire Harness, Auto Thermostat Fan switch to activate the fans

This  2 fan setup designed for an easy clamp on install for any styleany modelany brand, or any size cooling unit coils.  The 2 fan setup will come with wiring harness, automatic thermostat to activate the fans when the air temp reaches around the 85 degree or warmer behind the refrigerator, when the cooling unit is needing a higher flow of air through the condenser fins. The thermostat is at the end of the wire harness next to the fans and hangs loose, not mounted.  When you install fans and ready to wire the fans, all that's needed is a 12VDC positive connection (from any source) and a good DC frame ground (from any source).  If you want to connect to the refrigerator DC, the wire harness will come with a piggyback terminal so you do not need to cut any original wires to use fan harness wiring. All wire terminal for hook up are furnished and already crimped to wire harness.

No holes drilled at any time to mount fans or brackets.

The fan specs are:

DC Brushless Fan Motor

Fan Motor has Ball Bearings

DC 12 volt range 10.2 to 13.7

Amp draw 0.15a

3000 RPM

CFM Air flow 46.46

dBA 28.58

each fan size: 92 x 92 x 25 mm or 3 3/8 x 3 5/8 1 inch
