They are 2 different style fans we use, depending on if the cooling unit is the Reman or OEM Norcold (option #1) or the Brand-new Amish built Cooling Unit (option #2)

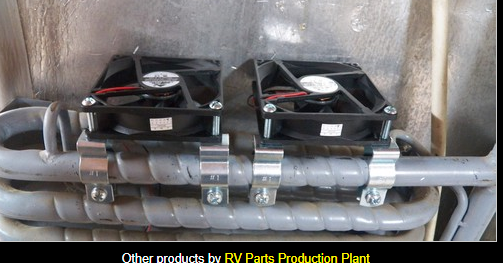

This is a 2 fan setup designed for an easy on install for any style, any model, any brand, or any size cooling unit coils. The 2 fan setup will come with wiring harness, automatic thermostat to activate the fans. We will ship one of 2 styles, if you order a Remanufactured cooling unit or a Brand-new Amish built cooling Unit we ship a style fan switch thermostat for air temp for reaching around the 85 degree or warmer behind the refrigerator when the cooling unit is needing the higher flow of air through the condenser fins to activate fans. The fan thermostat is at the end of the wire harness next to the fans and hangs loose not mounted. If you order the Brand-new Amish Built cooling unit we ship a style fan switch that would be mounted on the Steam pipe as the new unit is premade for. When you install fans and ready to wire the fans, all that's needed is a 12VDC positive (from any source) and a good DC frame ground (from any source). If you want to connect to the refrigerator DC, the wire harness will come with a piggyback terminal so you do not need to cut any original wires to use fan harness wiring. All wire terminal for hook up are furnished and already crimped to wire harness.
No holes drilled at any time to mount fans or brackets.
The fan specs are:
DC Brushless Fan Motor
Fan Motor has Ball Bearings
DC 12 volt range 10.2 to 13.7
9025 fan option #1 has Amp draw 0.15a.... 12032 fan option #2 amp draw 0.25
3000 RPM
CFM Air flow 46.46
dBA 28.58
option #1 fan size: 92 x 92 x 25 mm or 3 3/8 x 3 5/8 x 1 inch
option #2 fan size 120 x 120 x 32 mm or 4 3/4 x 4 3/4 x 1 1/4 inch
