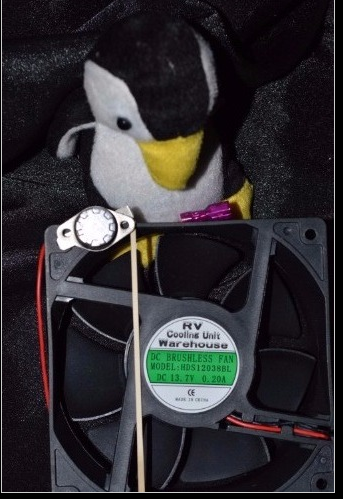

12038 High volume fan with fan switch either for OEM or Amish cooling unit
Item #12038-HVWS
Fans / Fan,thermostat

 Fans operating is a must For the any cooling unit use,  fans to increase the Air Flow through the condenser fins. Fans are use to increase air flow through the condenser, not used to remove heat from the compartment.

These fans are 12 VDC with 0.20A draw each. Smooth DC brushless operation with Ball Bearings

OEM uses a different Temp fan switch located on the condenser fins and the Amish cooling unit different temp fan switch is located on the Steam Pipe we will need to know which one needed before we ship.

Place a note on you order as to rather this Fan and Fan thermostat switch is for an OEM cooling unit or is it for the Amish built cooling unit so we will know which fan thermostat switch to ship.


  • DC Brushless Fan DC

  • 13.7 VDC 0.20 Amp draw  (10.8 to 13.2 DC volt range)

  • 3000 RPM

  • CFM 107.54

  • Noise level dBA 41.5

  • Over all size 4 3/4 x 4 3/4 x 1 1/2

Switch
