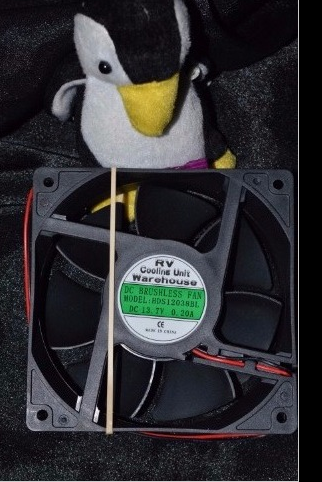

Condenser Fan 12038 High Volume Fan
Item #F12038
Fans / Fans
Available
$49.95

This is a Replacement fan for Both a Dometic and the Norcold Refrigerators, like the 1200 series Norcold. If you have a bad fan this would be the replacement needed. If you get the common Norcold "NO CO" code, be sure to confirm the fans are running, if not this may be the main issue bad fan/fans.

On most of the Norcold Refrigerator there are 2 fans.  With this fan, which will have a higher air flow output,  to give the correct AIR flow through the upper condenser fins for max cooling performance.

2  Fans operating for any cooling unit is a must. For the best cooling use  fans to increase the Air Flow through the condenser fins. Fans are use to increase air flow through the condenser, not used to remove heat from the compartment.

These fans are 12 VDC with 0.20A draw each. Smooth DC brushless operation with Ball Bearings




  • DC Brushless Fan DC

  • 13.7 VDC 0.20 Amp draw  (10.8 to 13.2 DC volt range)

  • 3000 RPM

  • CFM 107.54

  • Noise level dBA 41.5

  • Over all size 4 3/4 x 4 3/4 x 1 1/2
