Keeps your RV refrigerator frost free. Work with any model RV Refrigerator. Our "Frost Guard" series is Easy install with only one wire DC connection needed and one ground connection. Slide fan lead through the drain tube to make the DC connection at the back side. Very low amp draw. Makes the inside an even coldest top to bottom. Allows refrigerator to get cold faster. Allows you to lower the thermostat setting number and still maintain cold temps. Takes up no space when attached to fins. Fan frame size is 13 x 4 3/16 inches and only 1/2 inch thick. Fan amp draw per fan is 0.07A. We ship by UPS only. The LED light is White.
These 13 wide Frost Guard Fan is custom built so we will have a few days lead time to custom build for you

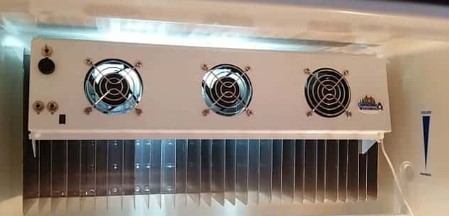

The picture shows attached in place, the Frost Guard Evaporator Fan frame assembly is Snap locked in place. The wire lead is slid through the drain tube. Light in the picture shows Blue was only used to bring attention to light difference from the interior OEM light. The LED light for the Frost Guard fan is White.
This is the only RV Evaporator fan with a PC board and individually operated fans with LED's on the market, the added picture shows the way the back side looks:
Be sure to measure the width of your Evaporator fin before ordering
This listing is for our new design Frost Guard Fan RV Refrigerator Evaporator Fans making it a Frost Free and will also make the insides colder. The most common fan we sold for year was the the small 2 fan that clip on the evaporator, these fans were so popular and we have sold in the 1000's and 1000's through our web site and years ago through eBay, but we keep hearing from our old customers and our new customers to come out with a wider version. We listen to our customers to come go with a more deluxe, wider frame fan base to cover more evaporator area, more deluxe features. We did listen and here's what features this unit has:
The steel metal frame is power coated, white in color.
The outer steel flange side mounting legs (right and left) are attached to the evaporator fin with very aggressive 3M Velcro, locking to the outer surface. Of course with this style of attachment allows the fan frame to be removable as well.
The Left and Right Flanges are pressed in place to lock the 2 side frame holding flanges in place before the fan frame is set to lock to the stand-off lock clips. No Drilling at any time for any mounting.
The Fan frame is now snapped in place after the side flanges are attached to the stand offs. The outer frame is removable for cleaning if needed.
We use Velcro, never wears out and not affected by cold or age.
The Frame is attached to the flanges at a preset designed angle downward to circulate from the inside shelf, blowing the air through the fins pushing the cold of the evaporator fins through out the interior of the refrigerator.
The features on the front frame with fans has the toggle switches to operator either 1 fan, 2 fans or all 3 fans at the same time
Another feature is the LED light which can be ON all the time or turned ON when needed rather any of the fans are ON or not. The systems is protected by a front mounted fuse holder with fuse and screws on cap
The White Powder coated Metal Frame size is 13 inch wide by 4 5/16 inch height and around 5/8 inch thickness. With the small size and the way it's attached to the front of the evaporator it will not take up space from your food zone shelf. Each fans with a chrome grill has a specs/rating of:
DC voltage 12 to 13.2vdc
Amp draw of 0.07amp Brushless Fan Motor
All fans have ball bearing for long life and smooth quiet running
Fan are very quite running, unable to hear them running.
This design features means your interior light does not have to be moved, nor do you need to purchase different models for different Brand refrigerators. According to some competition found on the web you need to remove and remount interior light or on some models you must install an air baffle to direct air through the fins, or on some you need to relocate the thermostat, and so on. Our unit is set at an angle to the fins, no moving of any thermostat, no moving of any interior light. no adding an air flow diverted to make the fans blow through the fins, ours have individual toggle switches for LED lights and/or Fans from 1 to 3 fans running at one time. Competitors turn ON unit all fans run and light ON all the time no way to controls each.
The wiring harness lead would slide through the Drain tube to make the DC connection at the refrigerator PC Board or incoming DC power. We did not design this fan to use the interior light for the DC power, since most of the newer refrigerator coming out do not have an interior light with continuous DC voltage present when door is closed.
Some competitor's fan on the market are made of plastic, only clips to fins with alligator clips, has only 2 fans, and has not LED lights.
